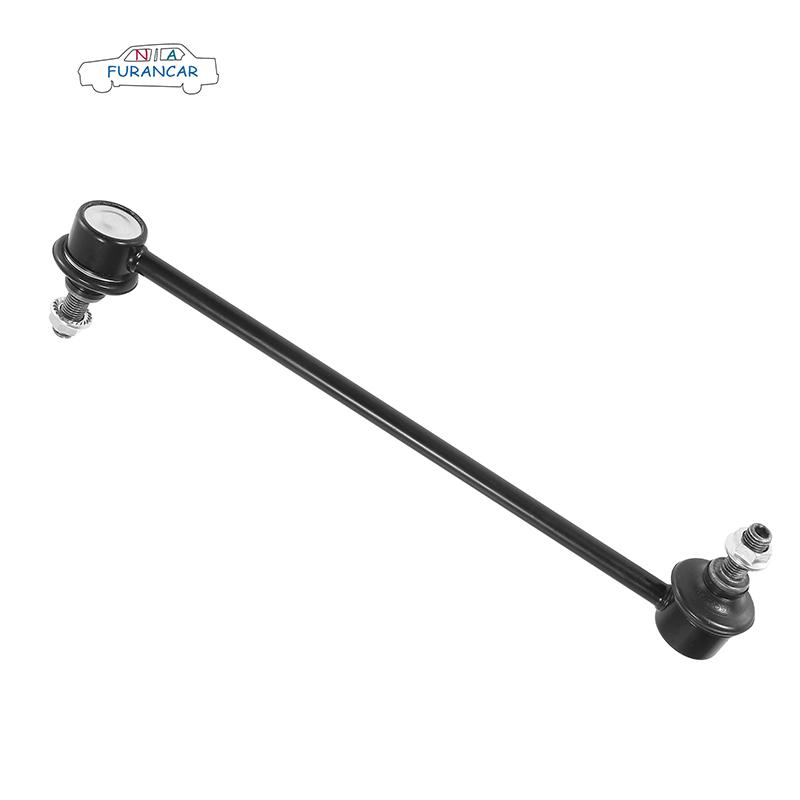

High quality 48820-47010 TOYOTA AVENSIS sway bar link

High quality 48820-47010 TOYOTA AVENSIS sway bar link

The High quality stabilizer bar link is usually fixed on the lower arms of the left and right suspension. When the car is cornering, the centrifugal force will act on the rolling center of the car to cause the body to roll, which causes the suspension of the curved inner and outer wheels to stretch and compress, resulting in the sway bar link the rod extension and twisting uses the rebound force generated by the twisting of the shaft to suppress the body roll. Of course, this kind of rotation is small. If the angle of rotation is too large, the car will overturn, that is, it is really rolling.

OE NUMBER: 48820-47010 / 48820-02030 / 48820-02040

APPLICATION CAR:

TOYOTA AVENSIS (_T25_) 2003/03-2008/11
TOYOTA AVENSIS Estate (_T25_) 2003/04-2008/11
TOYOTA AVENSIS Saloon (T25) 2003/04-2008/11
TOYOTA COROLLA (_E12_) 2001/01-2007/12
TOYOTA COROLLA Estate (_E12_) 2001/03-2008/12
TOYOTA COROLLA Saloon (_E12_) 2000/08-2008/03
TOYOTA COROLLA Verso (_E12_) 2001/07-2004/07
TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2004/03-2009/04
TOYOTA PRIUS Hatchback (_W2_) 2003/09-2009/12
TOYOTA PRIUS Saloon (_W1_) 2000/05-2004/01
TOYOTA WISH MPV (_E1_) 2003/01-2009/03
HYUNDAI/NISSAN

SIZE: LENGTH 285 MM
THREAD SIZE: M12*P1.25mm

FITTING POSITION: Front Axle Right and left

MATERIAL: Ball Shell Use 45 Steel,Ball Pin Use 40 Cr With Heat Treatment Surface.

HARDNESS : 28-35.

GREASE : Gread A,GB/T7324-2010,(-40℃ - 120℃).

Rubber Is Use The Best Material Work On -40℃-120℃

WARRANTY: 2 years

ACCEPTED OEM SERVICE： YES

MOQ: 50pcs

PACKAGE: Plastic bag+ Carton + Pallet or According to our customer's request

LOGO: Laser marking our customer's LOGO on the products

DELIVERY TIME: 30 DAYS, If new model, it will be 45 days.

WHY CHOOSE US?

Ningguo Friend Trading Co., Ltd has around more than 600 kinds of stabilizer links. And we have professional techanical department. So that we can make the sample according to your samples or drawings within 10 days.

Our stabilizer links have been exported to Mexico, Russia, USA, ITALY, Germany, Canada, South Africa.

We have very strictly quality controlling system to make sure each stabilizer link with good quality standard. If any quality problem , we will send the high quality products to you freely again.

FAQ:

1. Q: How about your Quality Controlling System?

A: Each step of our production process have the quality checking workers. They will check the products one by one before going to next production step. And before package, our QC workers will choose 15% of the cargo to check the quality again to make sure the cargo is with good quality. If the 15% products have around 1% with defects, we will recheck all pieces of the cargo. And our quality warranty is 2 years. If any quality issues feedback from our customers, we will fully take charge of it.

2. Q: How long is your delivery term?

A: Our standard product delivery term is normally 30 days.

A new product development is 60days including the mass production. Under normal circumstances there are standing stock for regular types.You can email us to learn more details.

3. Q: How many years is your company in auto parts business field?

A: Our Company started since 2005,there is about 16 years history forus in auto parts business field.

4. Q: Are you trading company or factory?

A: We are factory with trading company.

5. Q:What's the MOQ for each item?

A: Our business way is spot sales,if the items we have stock,there is no limitation for MOQ to be manufactured based on your order.
