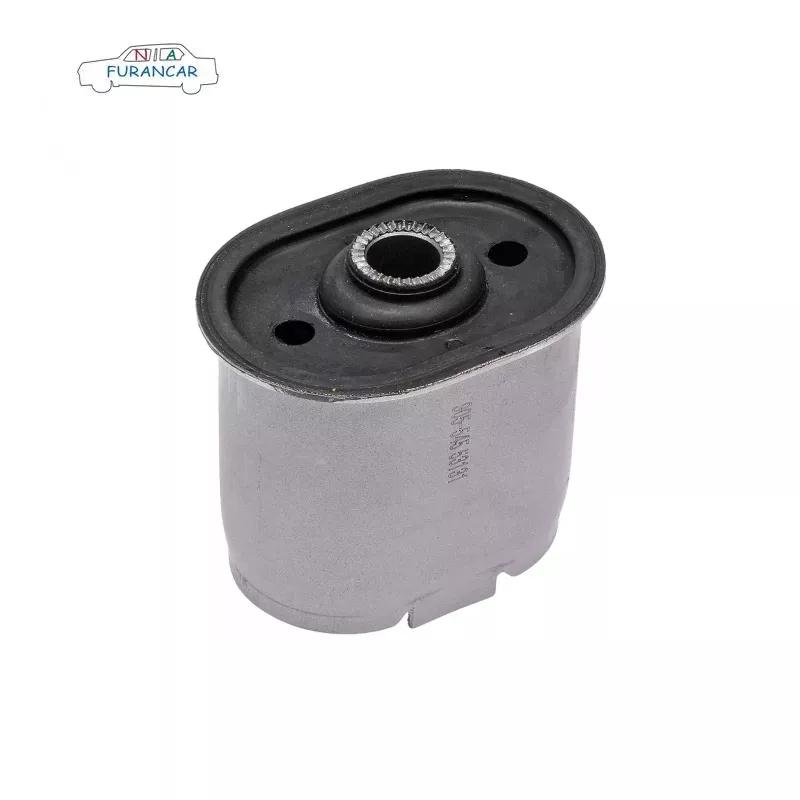

Rubber Bushes Arm Bushing Rear SpringCRAB003 for CHRYSLER

 Rubber Bushes Arm Bushing Rear Spring CRAB003  for CHRYSLER

What is control arm bush / Suspension bushing ?

The car suspension system is the part connecting the body and the wheels, consisting of suspension arms, connecting rods, shock absorbers, springs and other components. The role of the suspension system is to support the body, cushion the impact transmitted to the frame by the road, and play a shock-absorbing, smooth role, so that the car can run smoothly and stick to the ground. Suspension components are not rigidly connected to the body, but have bushings in the middle to cushion vibration and impact. Common family car bushings are mostly made of rubber, like racing cars such as the more demanding control, will use metal bushings to reduce the body and suspension comparison between the false position, so that the control is more direct. Suspension parts in the bushings cracked or damaged, such as the common swing arm rubber sleeve is bad, should be replaced in a timely manner, otherwise the vehicle chassis will appear loose feeling, through the potholes when the road, shaking and bumpy feeling will be more intense, serious will affect the direction of control, inaccurate direction, run off and so on. Damage to the lower arm rubber sleeve can choose to replace only the rubber sleeve, but because of the disassembly and installation is more trouble, need special tools, so some people will choose the whole lower arm for replacement.

OE NUMBER:  CRAB003

APPLICATION CAR:

VOYAGER III (RG) 2000-                 CARAVAN III (RG_) 2000- CHRYSLER VOYGER 1995-2001

QTY: 1 PC

FITTING POSITION: Front Control arm bushing

Rubber Is Use The Best Material Work On -40℃-120℃

WARRANTY: 1 YEAR

ACCEPTED OEM SERVICE： YES

MOQ: 50pcs

PACKAGE: Plastic bag+ Carton + Pallet or According to our customer's request

LOGO: Laser marking our customer's LOGO on the products

DELIVERY TIME: 30 DAYS, If new model, it will be 45 days.

Rubber information

Rubber Material: NR

Rubber Hardness: 40-90 Shore A

Tensile Strength: 10-25 Mpa

Extension Elongation: 350%-450%

Compression Set: 35%

Ozone Resistant: Keep Quality 85%

Temperature Resistant: -45%

Aging Resistant: Keep Quality 85%

Oil Resistant: Volume Change l0%

Electric Conduction: Custom-made

Adhesion Strength: Accordance With The Requirements

Metal information

Metal Material: Accordance To DIN, ASTM, JIB, BS, NF, GB Standard

SurfaceTreatment: Parkerizing, Polishing, Zinc Plated,Spraypainted

Heat Treatment: Carburizing, Quench Hardening

Tensile Test: Accordance With Industry Standards

Flattening Test: No Crack Until 2/3*Diameter

Flaring Test: No Crack Until5/4*Diameter

WHY CHOOSE US?

Ningguo Friend Trading Co., Ltd has around more than 20,000 kinds of control arm bushings. Our factory is one of some car brands' OE suppliers in China. And our factory has the IATF 16949:2016 certifacte.

Our control arm bushings have been exported to Mexico, Russia, USA, ITALY, Germany, Canada, South Africa with good reputation.

We have 20,000 square meters factory and 5,000 square meters warehouse to make sure to deliver goods to all of our customers promptly. Our factory own the professional phosphating, Degreasing, Rubber molding, Auto-glue, 26 sets vulcazation machines, Die casting lines . We can make sure all of the products with good quality same as OE standard.

FAQ:

1. Q: How about your Quality Controlling System?

A: Each step of our production process have the quality checking workers. They will check the products one by one before going to next production step. And before package, our QC workers will choose 15% of the cargo to check the quality again to make sure the cargo is with good quality. If the 15% products have around 1% with defects, we will recheck all pieces of the cargo. And our quality warranty is 2 years. If any quality issues feedback from our customers, we will fully take charge of it.

2. Q: How long is your delivery term?

A: Our standard product delivery term is normally 30 days.

A new product development is 60days including the mass production. Under normal circumstances there are standing stock for regular types.You can email us to learn more details.

3. Q: How many years is your company in auto parts business field?

A: Our Company started since 2005,there is about 16 years history forus in auto parts business field.

4. Q: Are you trading company or factory?

A: We are factory with trading company.

5. Q:What's the MOQ for each item?

A: Our business way is spot sales,if the items we have stock,there is no limitation for MOQ to be manufactured based on your order.
