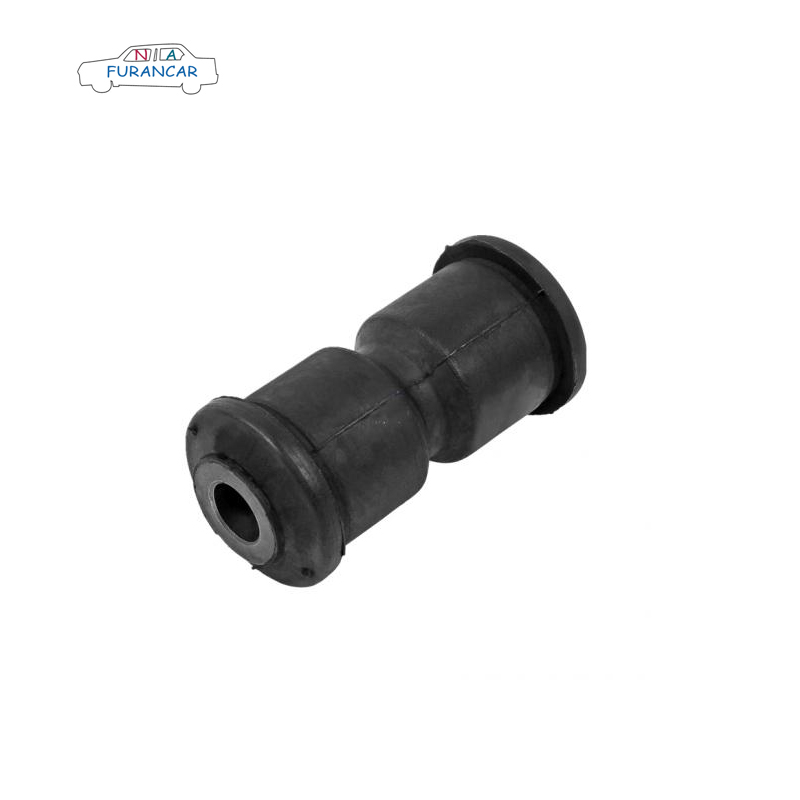

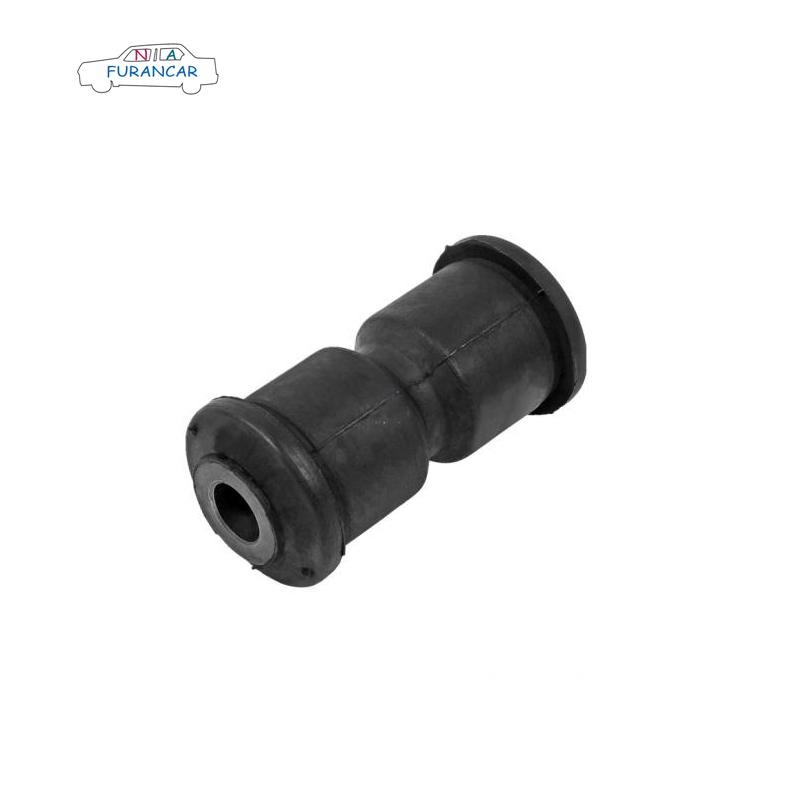

9013240150 Suspension rubber bushing for MERCEDES-BENZ

9013240150 Suspension rubber bushing for MERCEDES-BENZ

Most vehicles have front and rear suspensions, and each wheel on the suspension uses one or two control arms. Trucks and SUVs have upper and lower control arms, but many front-wheel drive vehicles only use lower control arms. The control arm connects the wheel hub and the steering knuckle to the vehicle frame. The control arm is usually equipped with a bushing and a ball joint on the wheel side of the vehicle, which can bend and control movement according to the road conditions and the driver's steering input. The control arm allows the wheels to move up and down while preventing back and forth movement.

The control arm bushing is usually composed of an outer metal sleeve, a natural rubber or polyurethane bushing, and an inner metal sleeve. Driving comfort and maneuverability are closely related to the control arm bushings. The bushing provides cushioning for the suspension system to control noise and vibration and provide a softer ride experience during bumps. The bushing can bend and move while maintaining rigidity and the ability to return to its original shape and position.

OE NUMBER: 9013240150 / 2D0511171

APPLICATION CAR: MERCEDES SPRINTER2-t BOX 2-Tbus VW LT 28-35 II Bus(2DM)

INNER DIAMETER : 12MM
OUTTER DIAMETER: 32MM

FITTING POSITION: Rear Axle

Rubber Is Use The Best Material Work On -40℃-120℃

WARRANTY: 1 YEAR

ACCEPTED OEM SERVICE： YES

MOQ: 50pcs

PACKAGE: Plastic bag+ Carton + Pallet or According to our customer's request

LOGO: Laser marking our customer's LOGO on the products

DELIVERY TIME: 30 DAYS, If new model, it will be 45 days.

Rubber information

Rubber Material: NR

Rubber Hardness: 40-90 Shore A

Tensile Strength: 10-25 Mpa

Extension Elongation: 350%-450%

Compression Set: 35%

Ozone Resistant: Keep Quality 85%

Temperature Resistant: -45%

Aging Resistant: Keep Quality 85%

Oil Resistant: Volume Change l0%

Electric Conduction: Custom-made

Adhesion Strength: Accordance With The Requirements

Metal information

Metal Material: Accordance To DIN, ASTM, JIB, BS, NF, GB Standard

SurfaceTreatment: Parkerizing, Polishing, Zinc Plated,Spraypainted

Heat Treatment: Carburizing, Quench Hardening

Tensile Test: Accordance With Industry Standards

Flattening Test: No Crack Until 2/3*Diameter

Flaring Test: No Crack Until5/4*Diameter

WHY CHOOSE US?

Ningguo Friend Trading Co., Ltd has around more than 20,000 kinds of control arm bushings. Our factory is one of some car brands' OE suppliers in China. And our factory has the IATF 16949:2016 certifacte.

Our control arm bushings have been exported to Mexico, Russia, USA, ITALY, Germany, Canada, South Africa with good reputation.

We have 20,000 square meters factory and 5,000 square meters warehouse to make sure to deliver goods to all of our customers promptly. Our factory own the professional phosphating, Degreasing, Rubber molding, Auto-glue, 26 sets vulcazation machines, Die casting lines . We can make sure all of the products with good quality same as OE standard.

FAQ:

1. Q: How about your Quality Controlling System?

A: Each step of our production process have the quality checking workers. They will check the products one by one before going to next production step. And before package, our QC workers will choose 15% of the cargo to check the quality again to make sure the cargo is with good quality. If the 15% products have around 1% with defects, we will recheck all pieces of the cargo. And our quality warranty is 2 years. If any quality issues feedback from our customers, we will fully take charge of it.

2. Q: How long is your delivery term?

A: Our standard product delivery term is normally 30 days.

A new product development is 60days including the mass production. Under normal circumstances there are standing stock for regular types.You can email us to learn more details.

3. Q: How many years is your company in auto parts business field?

A: Our Company started since 2005,there is about 16 years history forus in auto parts business field.

4. Q: Are you trading company or factory?

A: We are factory with trading company.

5. Q:What's the MOQ for each item?

A: Our business way is spot sales,if the items we have stock,there is no limitation for MOQ to be manufactured based on your order.
