Hyundai power steering hose, OEM# number is 575101C900， Brand: Nafurancar. We are a specialized manufacturer of power steering hose for more than 16 years in China.
Item NO.:
57510-1C900Order(MOQ):
50Payment:
TT, LC, PAYPALProduct Origin:
CHINAColor:
OEM STANDARDShipping Port:
SHANGHAI OR NINGBOLead Time：

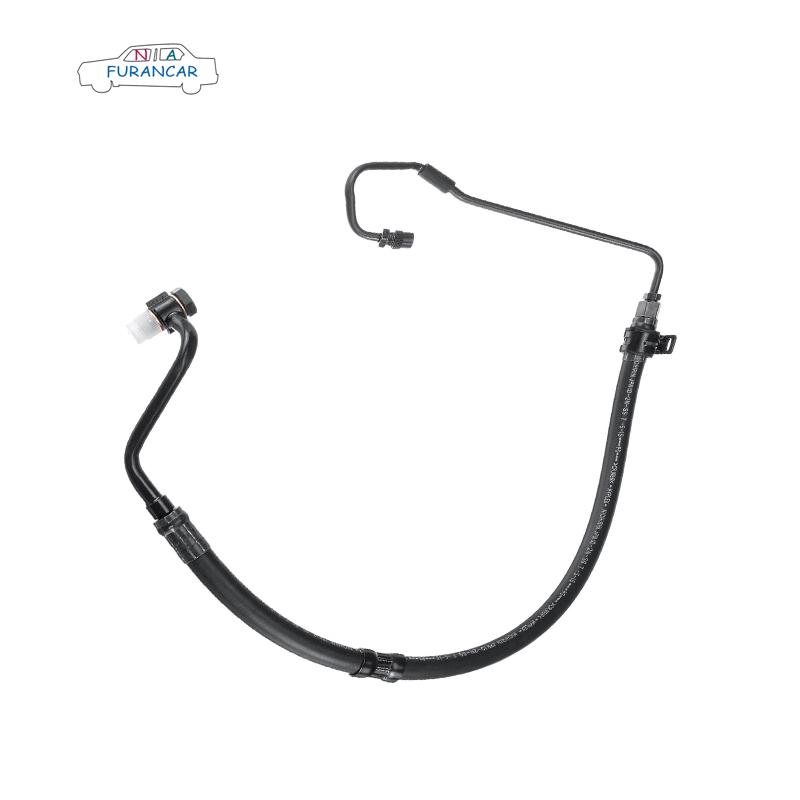

30 DAYS575101C900 Hyundai Getz 1.1 power steering hose
The power steering hose Working Principle
After the car engine starts, the steering oil pump runs, and the hydraulic oil is passed through the steering oil pipe, from the steering oil pump through the steering gear and linked to the steering oil pot. When the vehicle is running straight, the hydraulic oil from the pump flows to the left and right power cylinders and the return cylinder of the steering gear, and the oil pressure of the left and right power cylinders is equal, so the car keeps running straight. When the driver needs to steer, he turns the steering wheel and the relative position of the valve spool and the valve sleeve in the steering gear changes, so that most or all of the hydraulic oil from the pump flows into one of the power cylinders and promotes the car to turn left or right.
OE NUMBER: 575101C900
APPLICATION CAR:
2002 - 2016 Hyundai Getz 1.1
SIZE: OE STANDARD
WARRANTY: 2 YEARS
ACCEPTED OEM SERVICE： YES
MOQ: 20pcs
PACKAGE: Plastic bag+ Carton + Pallet or According to our customer's request
LOGO: Laser marking our customer's LOGO on the products
DELIVERY TIME: 30 DAYS, If new model, it will be 45 days.
temperature: 135 ± Circulating
ITEM
STANDARD
RESULT
Impulse Test
Oil temperature: 135 ± 2Environment
temperature: 10.3Mpa,Cycle frequency:30-40time/min, >225,000time
230,000 times in good condition
230,000 times in good condition
Tensile test
Tension rate:25 ± 3mm/min,>5337.9N
6,118N in good condition
6,201N in good condition
Low Temperature Test
-40 ± lt：*24h
NO CRACK
NO CRACK
Adhesion Test
Tension rate:25 ± 3mm/min,^17.51N/CM
45.57N/CM
49.68N/CM
40.09N/CM
Explosive Force
Rate ofPressureRisel71.5 ±68.6Mpa,^41.4Mpa
60.02Mpa
65.88Mpa
Ozone Resisting
50 土 pphm*40t：*70h
NO CRACK
NO CRACK
Inside Volume Expansion
8.97 ± 0.14Mpa,3〜8ml/Ft
5.51ml/Ft
5.68ml/Ft
5.54ml/Ft
Length Change
Pressure0-10.3Mpa,length less-5%~+2%
1.00%
0.75%
100%Compression Resistance Testing
Air:10.3Mpa*30 〜60s; Oil or Water: 13.8Mpa*30-60s, NO-LEAKING
NO-LEAKING
WHY CHOOSE US?
Ningguo Friend Trading Co., Ltd has around more than 700 kinds of power steering hoses. And we have professional techanical department. So that we can make the sample according to your samples or drawings within 10-20 days.
Our factory production capacity is 5,000 pieces of hoses within one day. The delivery time can be promised for you. We can laser print your logo on the pipes. And each high pressure power steering hose has to be tested by machine before package.
We have very strictly quality controlling system to make sure each hose with good quality standard.
FAQ:
1. Q: How about your Quality Controlling System?
A: Each step of our production process have the quality checking workers. They will check the products one by one before going to next production step. And before package, our QC workers will choose 15% of the cargo to check the quality again to make sure the cargo is with good quality. If the 15% products have around 1% with defects, we will recheck all pieces of the cargo. And our quality warranty is 2 years. If any quality issues feedback from our customers, we will fully take charge of it.
2. Q: How long is your delivery term?
A: Our standard product delivery term is normally 30 days.
A new product development is 60days including the mass production. Under normal circumstances there are standing stock for regular types.You can email us to learn more details.
3. Q: How many years is your company in auto parts business field?
A: Our Company started since 2005,there is about 16 years history forus in auto parts business field.
4. Q: Are you trading company or factory?
A: We are factory with trading company.
5. Q:What's the MOQ for each item?
A: Our business way is spot sales,if the items we have stock,there is no limitation for MOQ to be manufactured based on your order.
