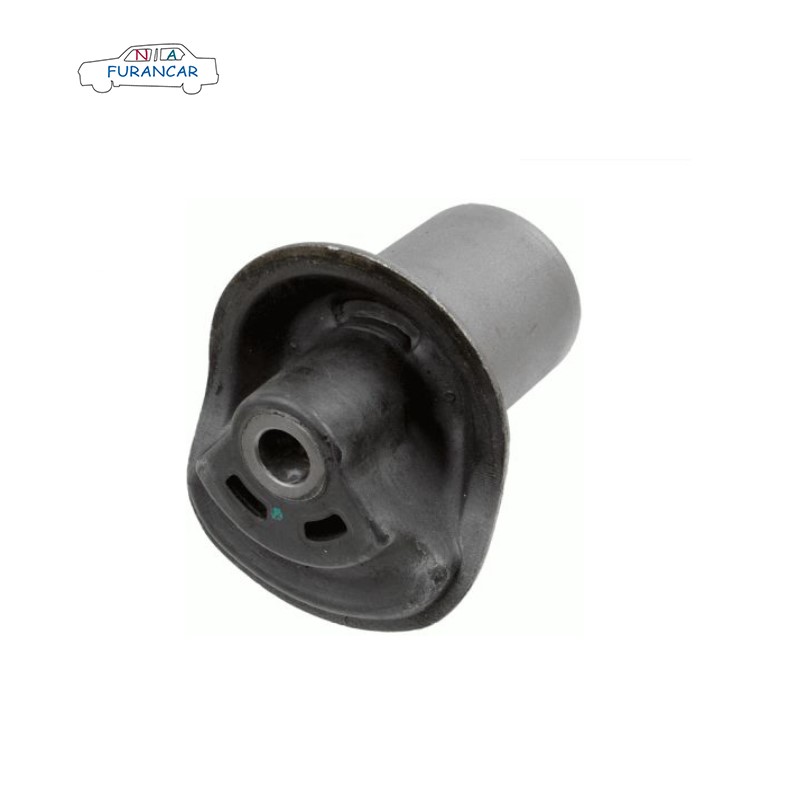

191501541 Control arm bushing weight is 0.502kgs. And it's fitting for VW SEAT. We designed it according to original sample. Please ensure the
products are installed by a competent individual.
Item NO.:
191501541Order(MOQ):
50Payment:
TT, LC, PAYPALProduct Origin:
CHINAColor:
OEM STANDARDShipping Port:
SHANGHAI OR NINGBOLead Time：
30 DAYS191501541 Mounting control arm bushing for VW SEAT
What if there is no bushing in the car ?
First of all, people will be shaken up and uncomfortable. Larger road undulations can still be dealt with a lot by springs and shock absorbers, but the kind of fine vibrations that make people feel numb will be very "honestly" transmitted to the body.
Secondly, it will be noisy. Various noises, such as "crunches" and "chuckles", will appear, and even the interior will become looser under long-term vibration.
Furthermore, the life of the suspension will be much shorter. A car with rubber bushings can withstand durability of 100,000 kilometers, but articulated bearings (commonly known as "fisheye" or "ball hinge") are not good. No racing car can change the "fisheye" every 100,000 kilometers.
In the end, the car will become difficult to drive. Of course, the "difficult to drive" here is for ordinary consumers, and for racers, they are eager. In a car without bushings, if the steering wheel is turned faster, it will feel like being kicked abruptly from the side, and the response of the car will become much more direct and much faster. For ordinary civilians, we don't want the car to react so fast, but rather slower, which can make people feel more comfortable and relaxed.
OE NUMBER: 191501541
APPLICATION CAR: VW SEAT
INNER DIAMETER : 12 MM
OUTTER DIAMETER: 44.5 MM
LENGTH: 90MM
FITTING POSITION: Rear Axle left and right
Rubber Is Use The Best Material Work On -40℃-120℃
WARRANTY: 1 YEAR
ACCEPTED OEM SERVICE： YES
MOQ: 50pcs
PACKAGE: Plastic bag+ Carton + Pallet or According to our customer's request
LOGO: Laser marking our customer's LOGO on the products
DELIVERY TIME: 30 DAYS, If new model, it will be 45 days.
Rubber information
Rubber Material: NR
Rubber Hardness: 40-90 Shore A
Tensile Strength: 10-25 Mpa
Extension Elongation: 350%-450%
Compression Set: 35%
Ozone Resistant: Keep Quality 85%
Temperature Resistant: -45%
Aging Resistant: Keep Quality 85%
Oil Resistant: Volume Change l0%
Electric Conduction: Custom-made
Adhesion Strength: Accordance With The Requirements
Metal information
Metal Material: Accordance To DIN, ASTM, JIB, BS, NF, GB Standard
SurfaceTreatment: Parkerizing, Polishing, Zinc Plated,Spraypainted
Heat Treatment: Carburizing, Quench Hardening
Tensile Test: Accordance With Industry Standards
Flattening Test: No Crack Until 2/3*Diameter
Flaring Test: No Crack Until5/4*Diameter
WHY CHOOSE US?
Ningguo Friend Trading Co., Ltd has around more than 20,000 kinds of control arm bushings. Our factory is one of some car brands' OE suppliers in China. And our factory has the IATF 16949:2016 certifacte.
Our control arm bushings have been exported to Mexico, Russia, USA, ITALY, Germany, Canada, South Africa with good reputation.
We have 20,000 square meters factory and 5,000 square meters warehouse to make sure to deliver goods to all of our customers promptly. Our factory own the professional phosphating, Degreasing, Rubber molding, Auto-glue, 26 sets vulcazation machines, Die casting lines . We can make sure all of the products with good quality same as OE standard.
We have very strictly quality controlling system to make sure each item with good quality standard. If any quality problem , we will send the high quality products to you freely again.
FAQ:
1. Q: How about your Quality Controlling System?
A: Each step of our production process have the quality checking workers. They will check the products one by one before going to next production step. And before package, our QC workers will choose 15% of the cargo to check the quality again to make sure the cargo is with good quality. If the 15% products have around 1% with defects, we will recheck all pieces of the cargo. And our quality warranty is 2 years. If any quality issues feedback from our customers, we will fully take charge of it.
2. Q: How long is your delivery term?
A: Our standard product delivery term is normally 30 days.
A new product development is 60days including the mass production. Under normal circumstances there are standing stock for regular types.You can email us to learn more details.
3. Q: How many years is your company in auto parts business field?
A: Our Company started since 2005,there is about 16 years history forus in auto parts business field.
4. Q: Are you trading company or factory?
A: We are factory with trading company.
5. Q:What's the MOQ for each item?
A: Our business way is spot sales,if the items we have stock,there is no limitation for MOQ to be manufactured based on your order.
